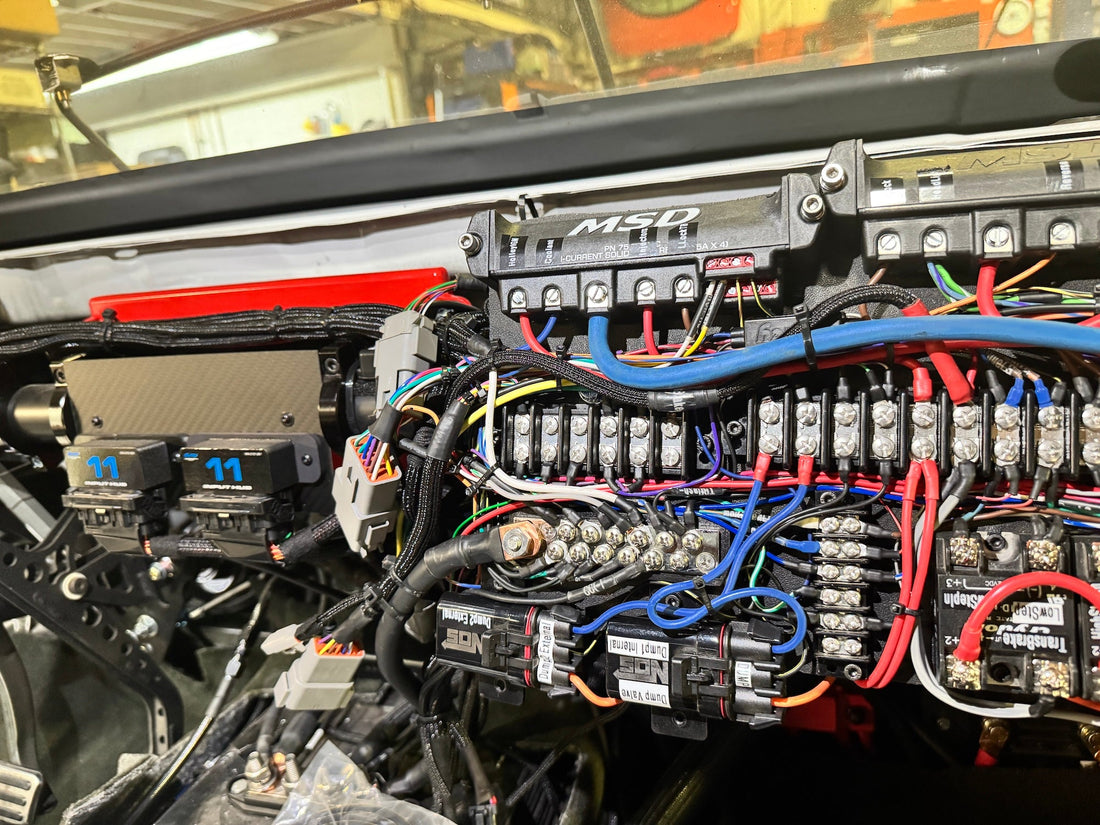

⚡ Power Distribution Module (PDM) Systems
Smarter Power. Cleaner Wiring. Maximum Control.
When reliability and serviceability matter, a properly integrated Power Distribution Module (PDM) is the backbone of a modern race car. At Moore Throttle Motorsports, we design and wire complete PDM systems that eliminate fuses, simplify power delivery, and give you total control over your electrical system — with the clean, organized finish your build deserves.
🔧 What Is a PDM?
A PDM replaces traditional fuse and relay boxes with a fully programmable, solid-state power control system. Each output is electronically protected, configurable, and tunable — reducing failure points and wiring complexity.
We integrate PDMs from all major manufacturers, including:
- MoTeC, ECUMaster, RacePak, Holley, FuelTech, and Hardwire Electronics
- CAN keypad and switch panel systems
- Smart relay modules and expansion boxes
⚙️ Our PDM Wiring Services
From drag racing to time attack, we build custom-tailored PDM solutions that simplify your setup while improving reliability.
Common services include:
- Full PDM design and wiring integration
- CAN keypad setup and labeling
- ECU and sensor power distribution
- Dedicated power/ground bus bars and noise-isolated routing
- Ignition, fuel, and fan output mapping
- Switch panel conversions (physical to digital)
- Data logging integration and fault diagnostics
- Service loops and labeled wiring for future changes
Your system will arrive clean, labeled, and ready to install — no guesswork, no spaghetti wiring.
🧠 Why Upgrade to a PDM System
- Simplifies troubleshooting — view current draw and faults instantly
- Reduces weight and complexity — fewer relays and fuses
- Enhances safety — programmable circuit protection and soft-start logic
- Adds professional control — configurable startup sequences, fan logic, nitrous enable, and more
We design every PDM layout to fit your car’s exact setup — from power-hungry drag cars to daily-driven swaps.
🏁 Race-Proven Performance
We don’t just install PDMs — we race with them. Our own systems have survived countless passes, vibration, and heat cycles without a single electrical issue. Every PDM build from Moore Throttle Motorsports is tested under real load conditions and verified before delivery.
💬 Get a Quote
📩 Email: sam@moorethrottle.com
📷 Send photos: Include your ECU, relay/fuse setup, or wiring layout for a quick quote.
⚙️ Optional: Let us know your PDM brand and system goals (drag, street, or track).
