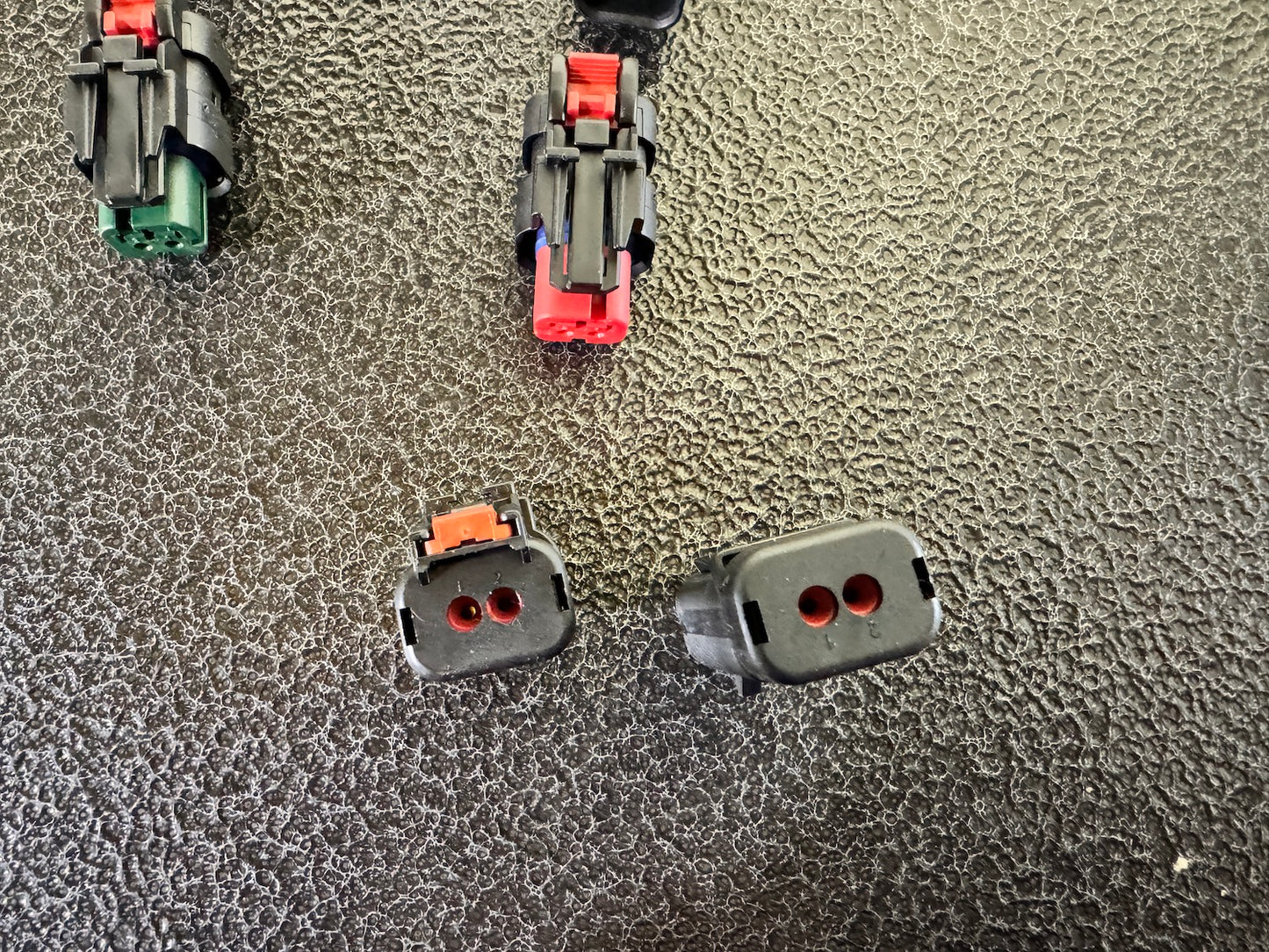

AMPSEAL 16 Connector 2 Pin Color/Key Kits

AMPSEAL 16 housings are environmentally sealed wire-to-wire and wire-to-device connectors that accept the Heavy Duty Stamped & Formed (HDSF) size 16 contacts rated up to 13 amps each. They feature an integrated latch for mating and are available in several color/key arrangements.

• Accepts contact size HDSF 16 (up to 13 amps)
• 14-20 AWG (2.50-0.50 mm²)

• Key/Colors: Red, Yellow, Green
• In-line mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Integrated Primary Latch Reinforcement (PLR) confirms contact alignment and retention

AMPSEAL 16 connectors use a color-coded keying system to prevent mis-mating. The colors are:

• Red: Key A (PN: 776427-1)
• Gray: Key B (Currently Unavailable)
• Yellow: Key C (PN: 776427-3)
• Green: Key D (PN: 776543-1)

Each connector Kit comes with MALE & FEMALE housings, seals, and all pins/contacts. Male connectors are a "universal" style connector and can connect to any female "key".
