AMPSEAL 16 Connector Kits 3/4/6/8/12 Pins

AMPSEAL 16 housings are environmentally sealed wire-to-wire and wire-to-device connectors that accept the Heavy Duty Stamped & Formed (HDSF) size 16 contacts rated up to 13 amps each. They feature an integrated latch for mating and are available in 2, 3, 4, 6, 8, and 12-way arrangements.

• Accepts contact size HDSF 16 (up to 13 amps)
• 14-20 AWG (2.50-0.50 mm²)

• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Integrated Primary Latch Reinforcement (PLR) confirms contact alignment and retention

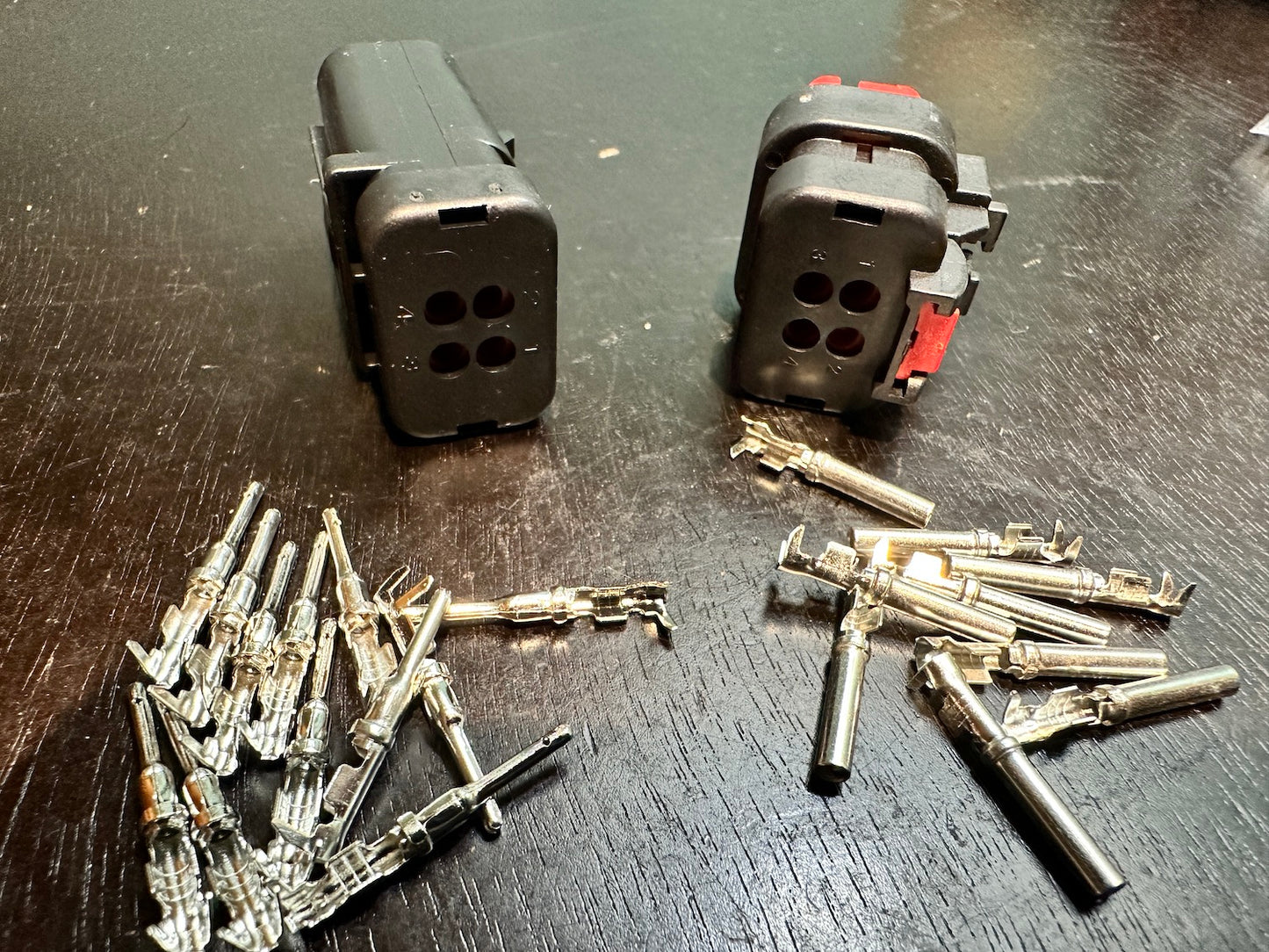

Each connector Kit comes with MALE & FEMALE housings, seals, and all pins/contacts.
