Apex 2.8 Sealed 4-Way Connector Kit

Aptiv 15425692 Apex 2.8 Sealed 4-Way

• Aptiv 15425692 Apex 2.8 Sealed 4 Way Connector Kit
• Category: Apex 2.8 Terminal Connectors
• Manufacturer: Aptiv
• Four Cavities
• Circumferential interface seal
• Most compact 2.8 mm system in the industry
• Wire accommodation range: .75 mm2 (20 Ga.) to 4 mm
• Two (10 Ga.) mid-sized housings (5.25 mm pitch - 6.40 mm rows)
• Terminal Position Assurance (TPA) device to detect partially installed terminals
• Mating connector #38855SAE/USCAR-2 Connector Latch Performance
• Sealing Protection: IP68
• With locking CPA
• Temperature Range: -40°F (-40°C) to 257°F (125°C)
• For high current automotive applications up to 40A
• Heavy-duty connectors for demanding environments

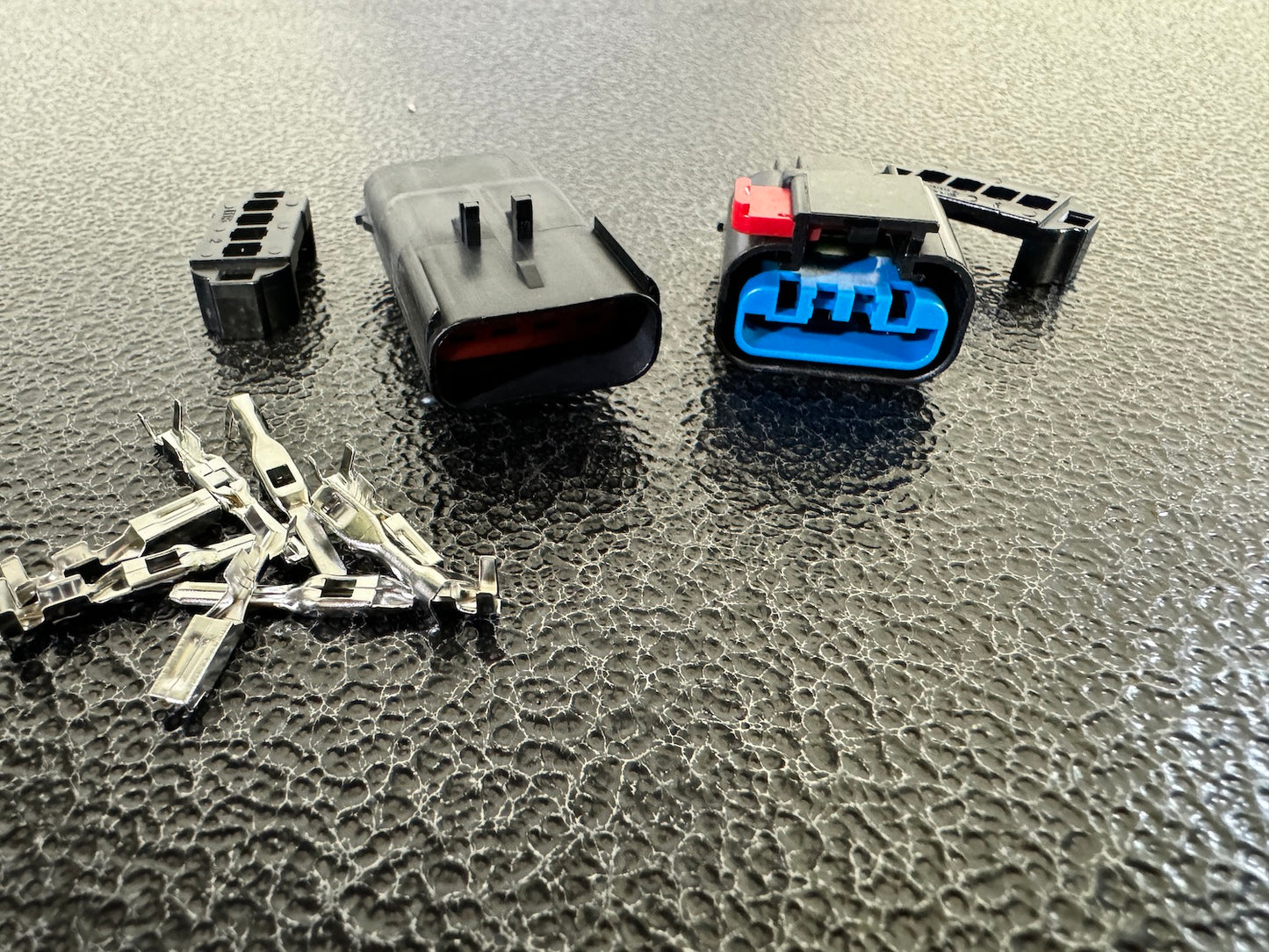

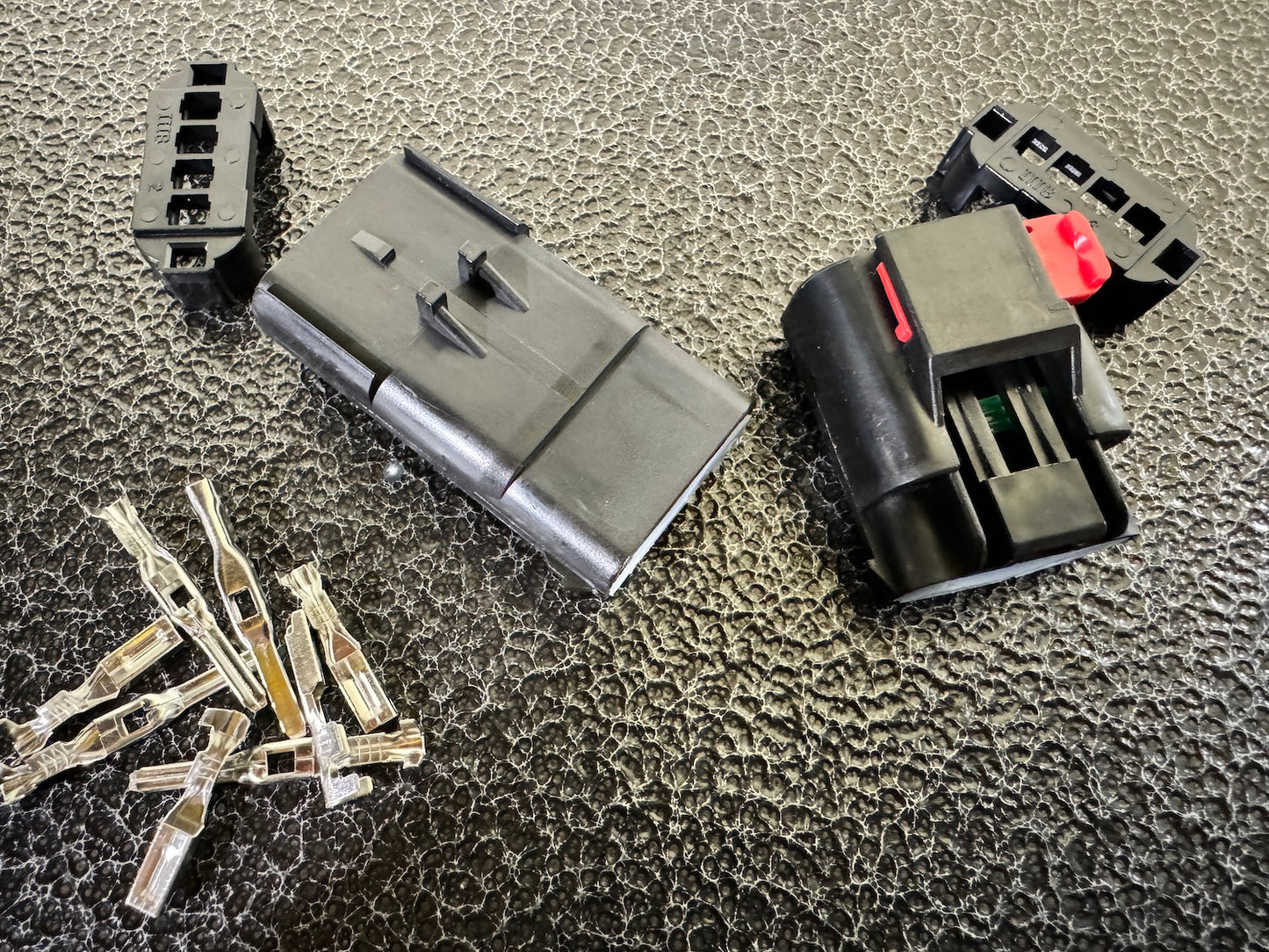

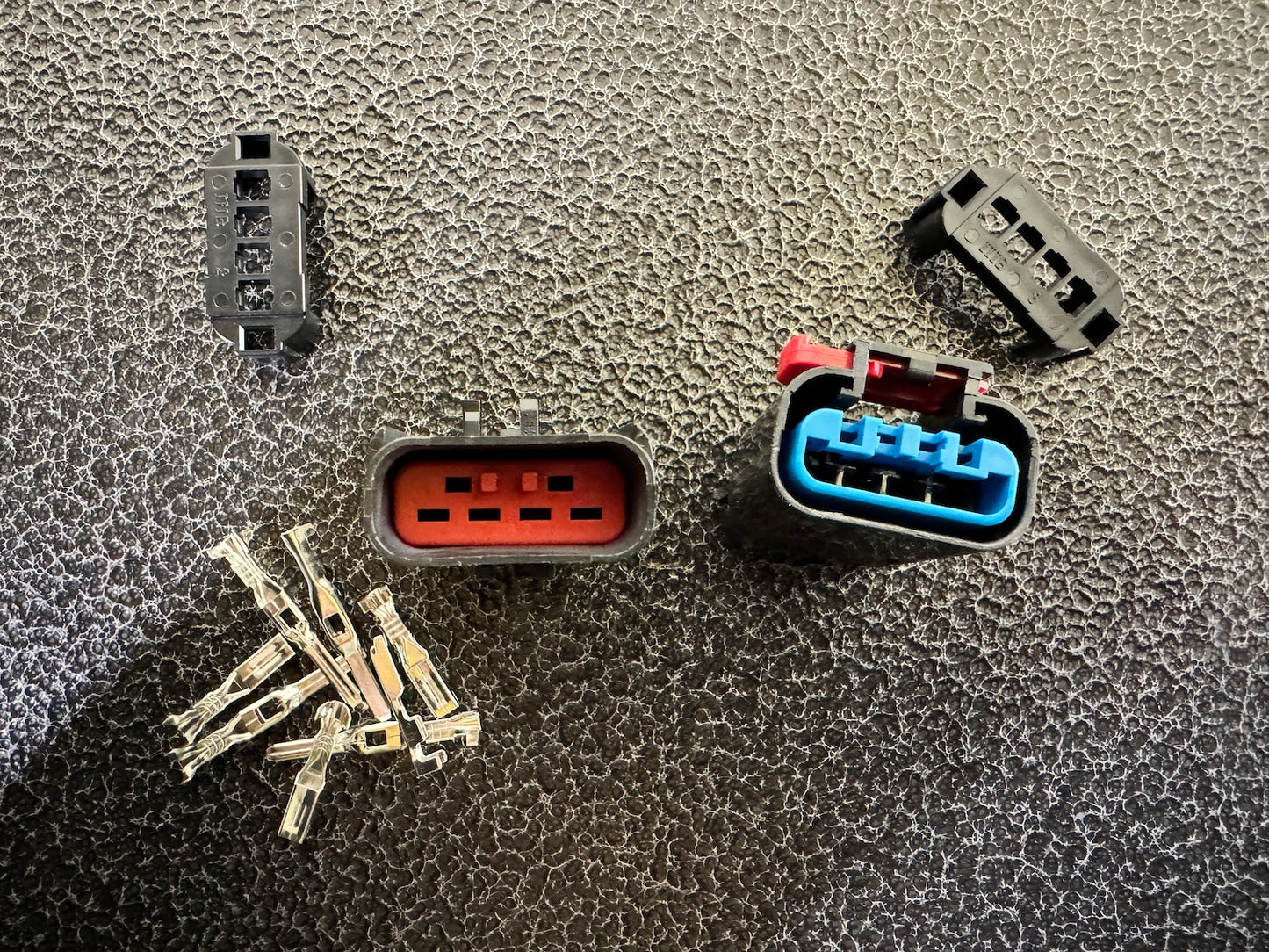

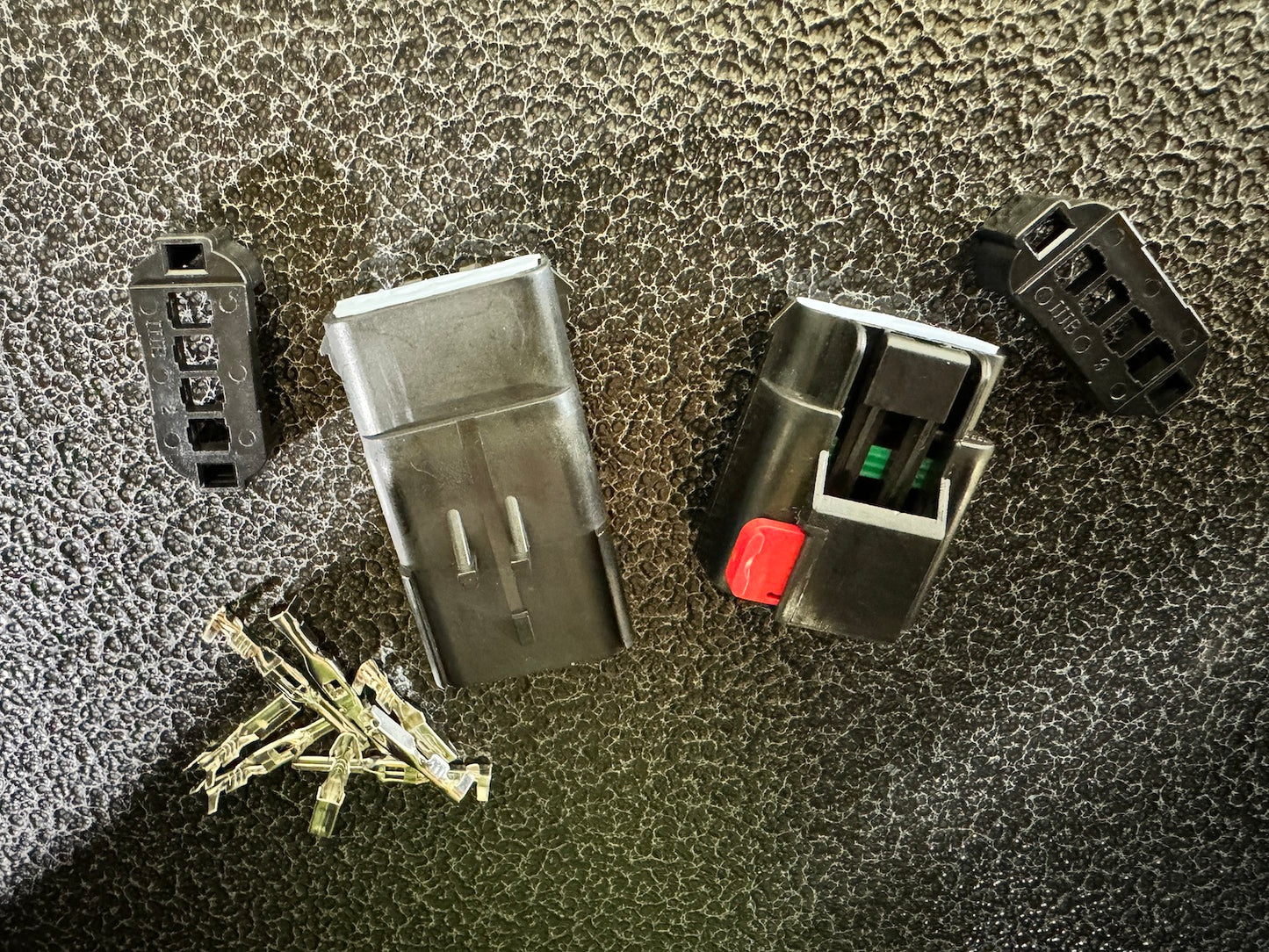

Connector Kit includes housings, locks, backing plates, seals and terminals.
