Deutsch DT Connectors

DEUTSCH DT connectors are designed for high-performance and reliable connections in transportation applications, such as under the hood, on the chassis, and in the cab.

• Accepts contact size 16 (13 amps)
• 14-20 AWG (2.50-0.50 mm2)
• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, flange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks confirm contact alignment and retention
• Available accessories: Backshells, boots, dust caps, gaskets, mounting clips

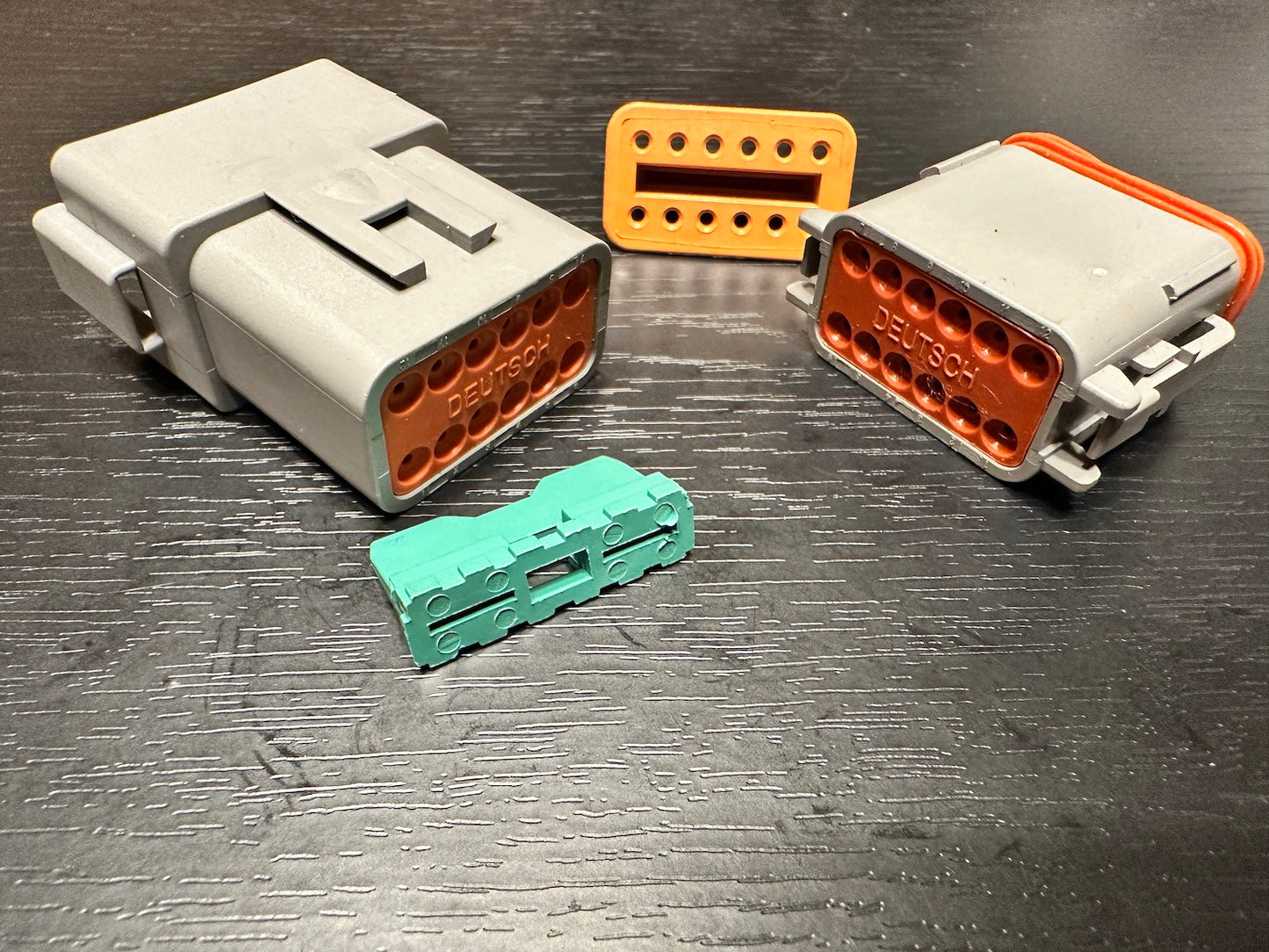

Each kit includes male & female housings, wedgelocks for each side, and male/female STAMPED contact pins/sockets. Solid nickel pins/sockets available upon request for additional costs as well as gold/milspec options as well.
