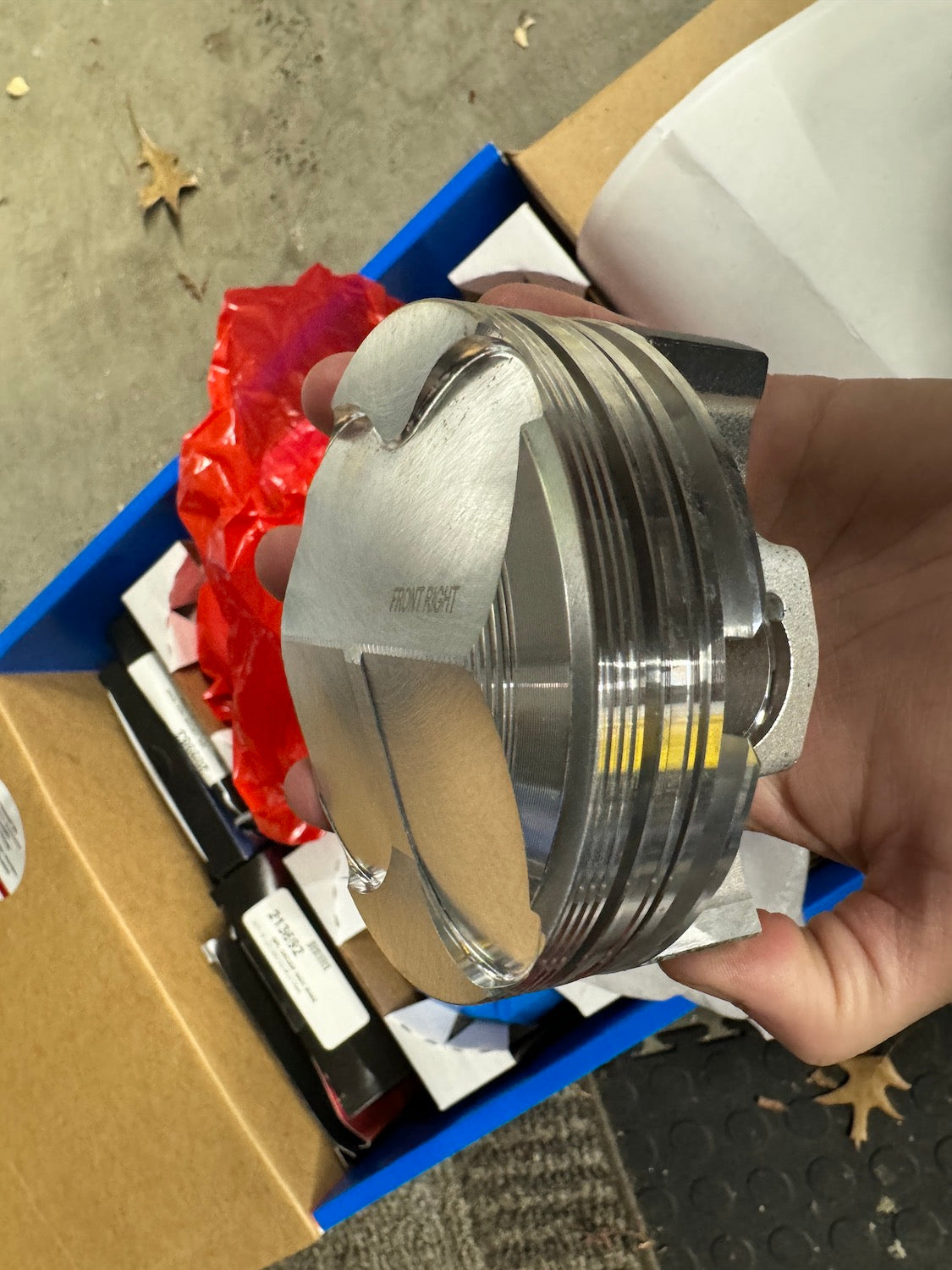

JE Pistons CUSTOM Ultra Series for 2000+ hp Coyote

JE Pistons (includes pistons, pins, locks, rings are additional costs, please EMAIL me for ring information) Brand new in box.

Custom JE Pistons Ultra Series for 2000+ hp Coyote +12cc DOME

I have 3 different sets/bore sizes available:

• 3.650
• 3.660
• 3.667

Info:

• Comp Height 1.165
• Forging U88M
• Pin Dia .866
• Pin Length 2.250
• Dome .265 (12cc)
• Includes JE .063 Wire Locks
• Includes Pins
• Top Ring Size: 1/16
• 2nd Ring Size: 1.2mm
• Oil Ring Size: 3mm +Spacer
• Pistons were custom designed and proven to work & live! Features include pin fit, Tuff Skirt, C2 Combo, Econo 3D Undercrown, Gas Distribution Groove, Notch Skirt, Offset Pins, and more etc.

• PINS #866-2250-23-93C JE Straight Wall Pin .866x.2250 .230w
• LISTING INCLUDES 8 PISTONS, PISTON WRIST PINS, LOCKS & OIL SUPPORT RAILS. DOES NOT INCLUDE RINGS!!!

You can buy these pistons without rings or with the rings for additional costs, but the rings I had made for these sets are expensive…so…Top Ring is an M2, 2nd ring is Napier Cut upgraded material. My costs on these rings were $995+. You could order a different set of AP/C33 top rings for much cheaper but M2 was what I was running with my previous setup to hold up to power/heat etc. I don’t need to sell these rings and can use them on my new sets, so I am just offering them as an option if you are interested, please email me.
