SuperSeal 1.0 ECU Connectors-Holley/Motec/Haltech/PDM
SuperSeal 1.0 ECU Connectors-Holley/Motec/Haltech/PDM
The SUPERSEAL 1.0 connector system offers rectangular housings made of UL 94-V0 rates thermoplastic. This system is designed for electrical wire-to-Board (1.0 mm) and ECU applications, under the engine hood or any location where sealing is required. Designed for ease of manual harness assembly, engine mounting and under hood environments.
34 Pin: 3 Keyway- 2 Top, 1 Bottom (Holley J1A)
34 Pin: 4 Keyway- 2 Top, 2 Bottom (Holley J2A)
26 Pin: 3 Keyway- 2 Top, 1 Bottom (Holley J1B, Dash, Injector Modules, EGT, etc)
26 Pin: 4 Keyway- 2 Top, 2 Bottom (Holley J3)
26 Pin: 5 Keyway- 3 Top, 2 Bottom (Holley J2B)
26 Pin: 6 Keyway- 4 Top, 2 Bottom (Holley J4)
These work with: Elite 550/750/950, Haltech IQ3 Street Dashes and the large connector on E8/11, PS1000/2000 and Elite 1000-2500, Fuel Tech FT600, Holley Dominator, Holley Terminator X, Holley HP, E8/11, PS1000/2000 and Elite 1000-2500, Dominator, Terminator, FT450, FT550, FT550Lite, Holley Digital Dashes (Pro), Holley Injector Drivers, Holley EGT Module.

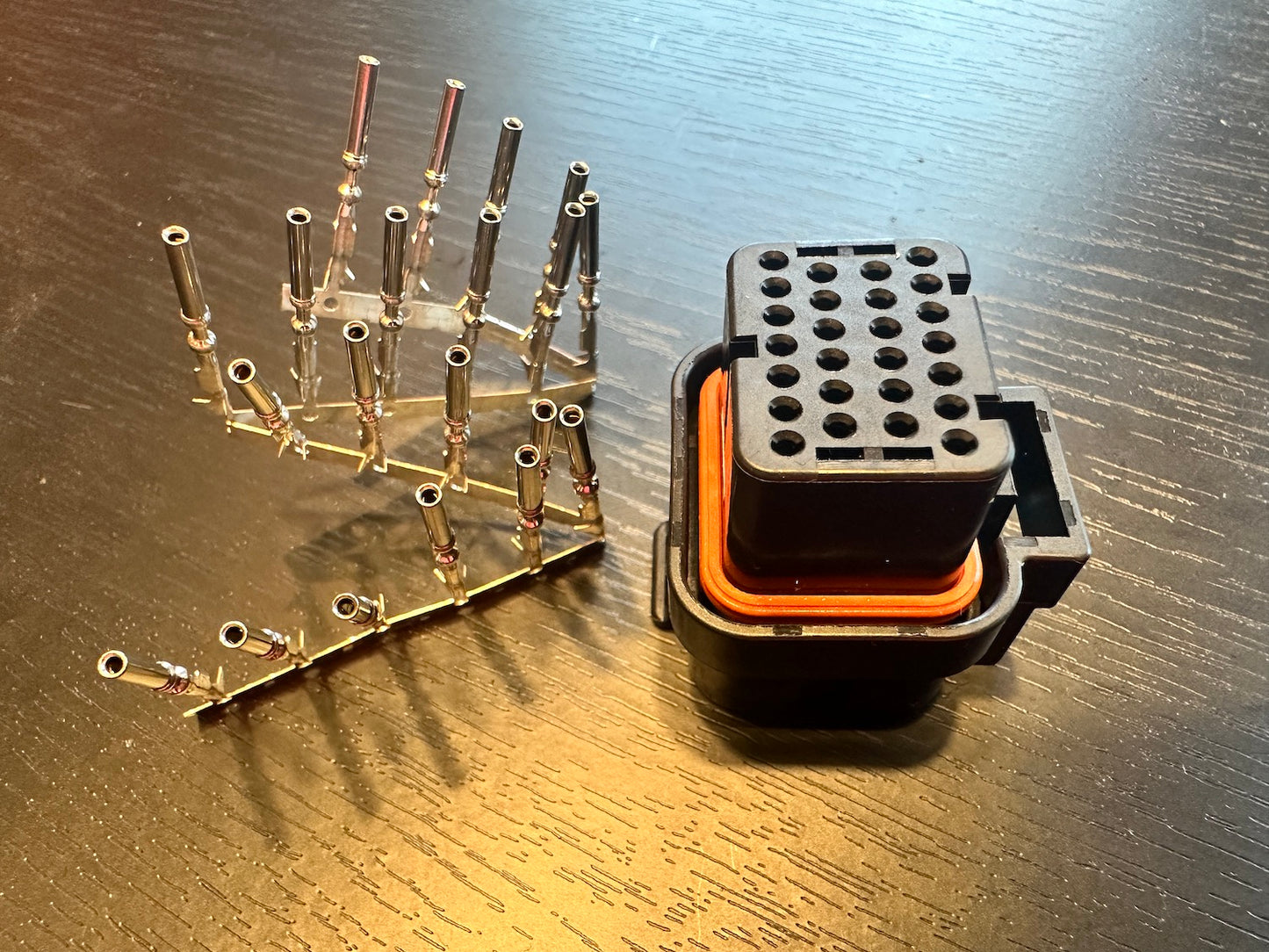

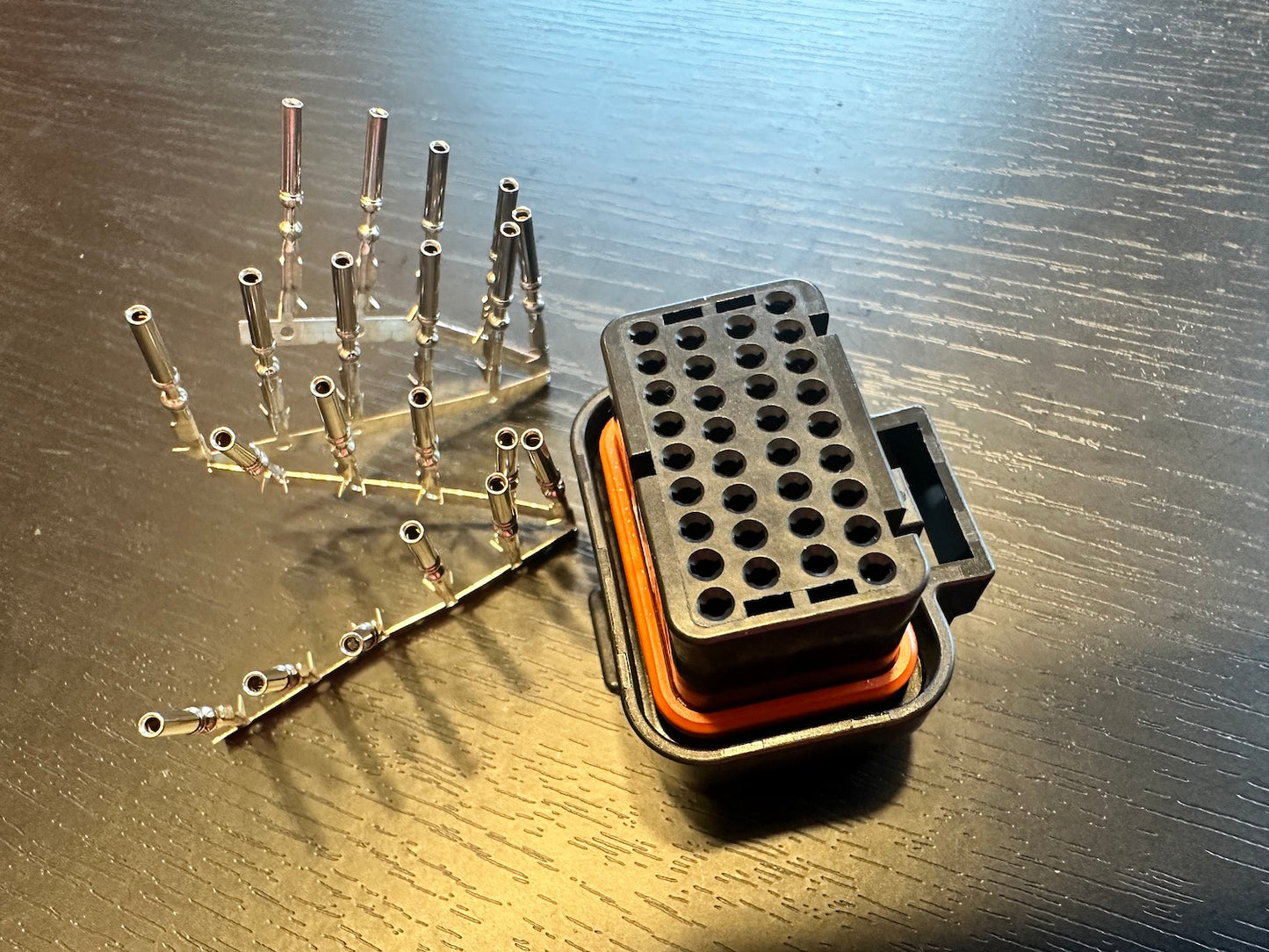

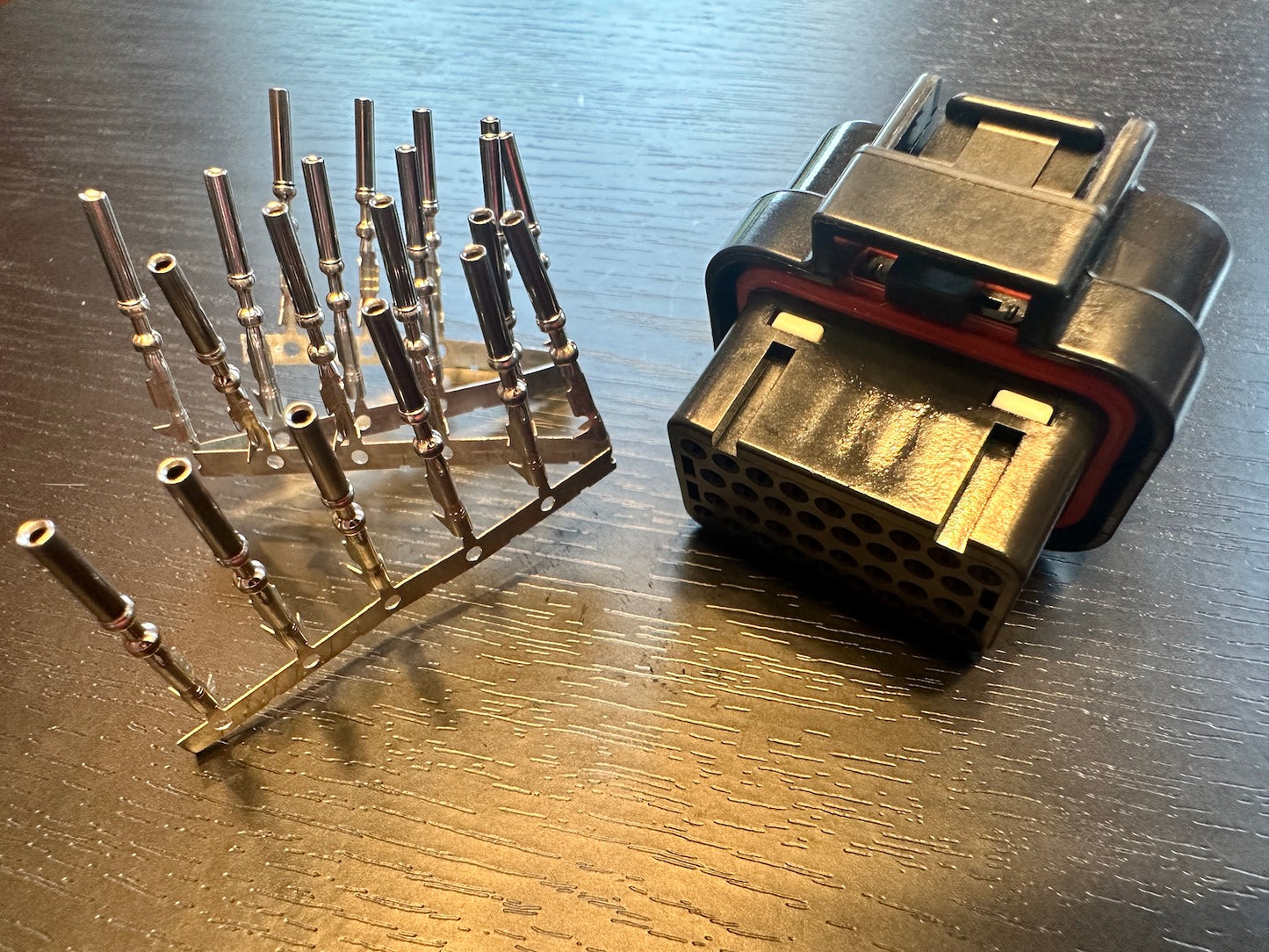

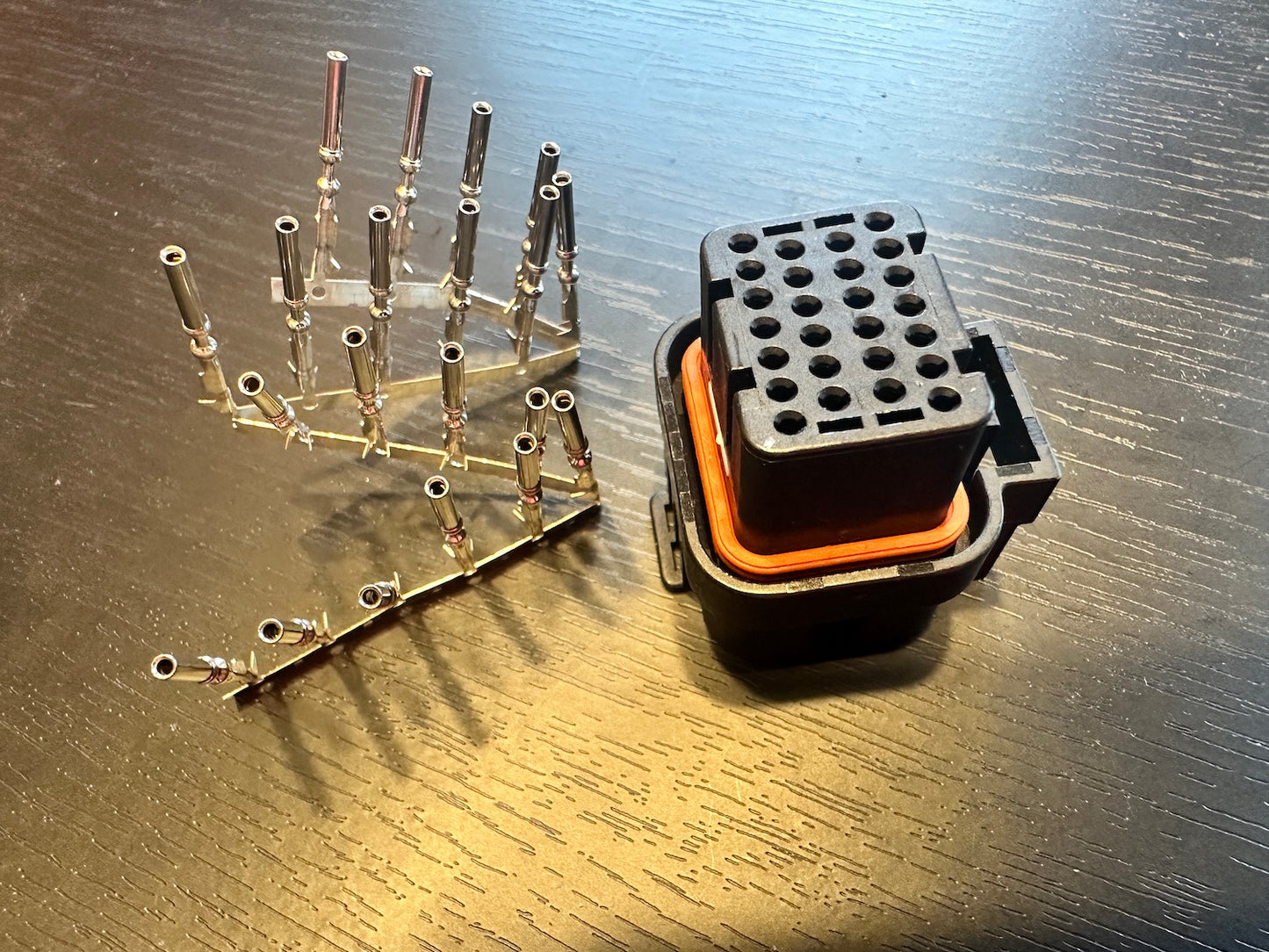

Each connector includes 10 stamped superseal pins.
