Tyco AMP ECU Connectors 8/14/23/35 Pins

AMPSEAL receptacle housings are environmentally sealed and available in 8, 14, 23, and 35 cavity arrangements. They accept size 1.3 mm contacts (up to 17 amps gold, up to 8 amps tin) and feature an integrated latch for mating.

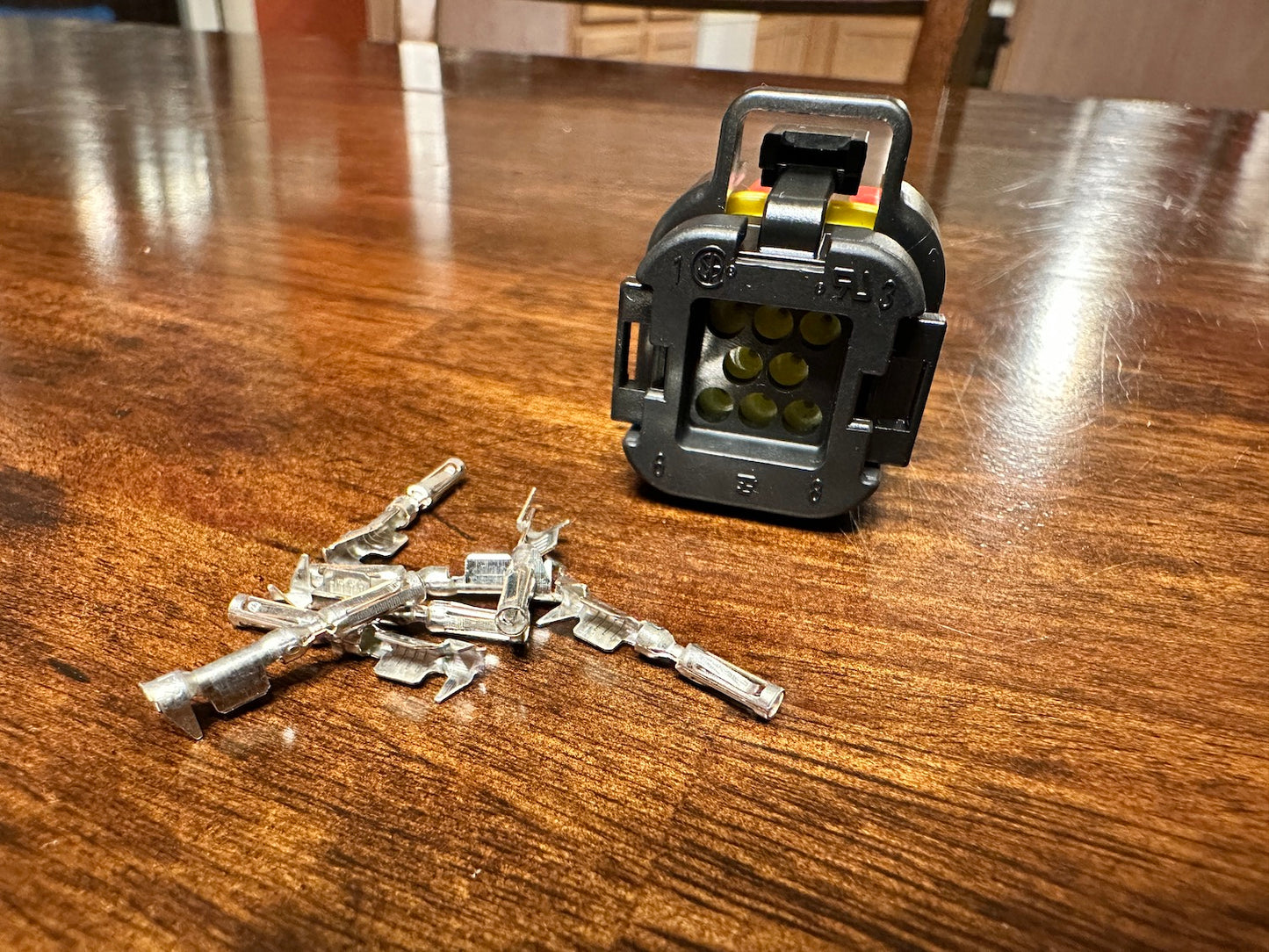

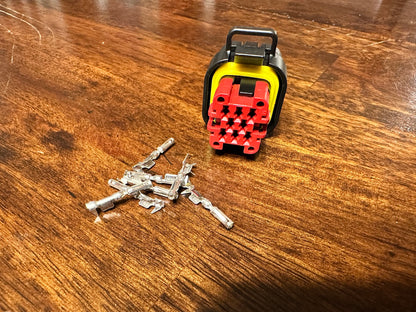

Choose cavity size - includes Female Connector as seen in picture as well as number of pins with each.

Plastic Cover/Boot is Optional (no boot available for 8 Pin)

(AIM PDM 35 WAY CONNECTOR KIT BLACK)
(MSD CDI Uses 23 Pin & 14 Pin)

Waterproof Tyco AMP ECU Connectors 8, 14, 23, 35 Pin for Car/Auto w/Pins Female
